Opis

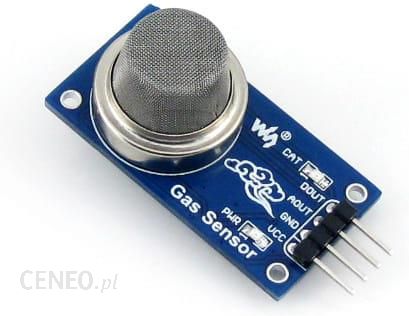

Moduł z czujnikiem jakości powietrza w zestawie znajdują się przewody połączeniowe.OverviewSensitive for benzene, alcohol, smokeOutput voltage boosts along with the concentration of the measured gases increasesFast response and recoveryAdjustable sensitivitySignal output indicatorSpecificationsPower: 2.5V ~ 5.0VDimension: 40.0mm * 21.0mmMounting holes size: 2.0mmApplicationsAir quality monitorHow to UseIn the case of working with a MCU:VCC ↔ 2.5V ~ 5.0VGND ↔ power supply groundAOUT ↔ MCU.IO (analog output)DOUT ↔ MCU.IO (digital output)Package ContainsMQ-135 Gas Sensor × 14-pin custom connector jumper wire × 1DownloadsDevelopment resources: demo codes, schematic, datasheets, etc. Click here to download
